Tire Mill
Contact Now
Products Details
Description

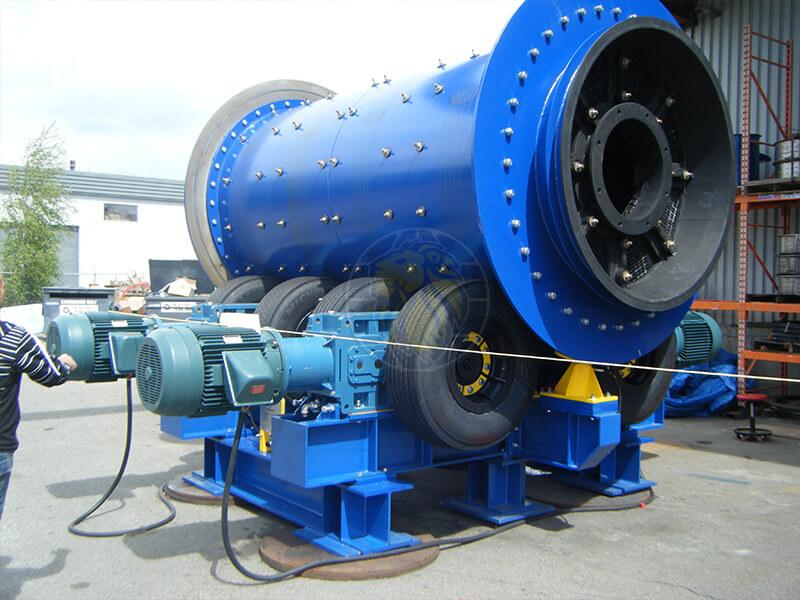

Tire mill is driven by tires, and the inner liner of the ball mill generally adopts rubber liner with light weight, low noise and high wear resistance coefficient, and manganese steel liner can also be used according to the actual situation.
Features
1)The structure is simple, and there is no casting big gear ring, bearing and lubrication system, which greatly reduces the maintenance cost.
2)The installation cost is low.
3)The use of steel structure base, durable.
4)There are no ring gears, reduction gears, steel wheels or bearings.
Advantages
1. Ready-made standard components, easy to replace and reduce downtime.
2. Customizable discharge type (overflow discharge or grid discharge).
3. Rubber lifting plate, long service life and easy replacement.
4. Convenient overhaul and maintenance.
Working Principle
Tire mill has a simple structure and is mainly composed of cylinder, feeding part, discharging part, transmission device, supporting device and lubrication system. The cylinder is the main body of the ball mill, which is usually welded by thick steel plates, and is lined with wear-resistant materials to reduce wear and improve service life. The feeding part is located at one end of the cylinder, which is responsible for evenly feeding the materials to be ground into the cylinder; The discharging part is located at the other end, and the discharging granularity of the material is controlled by a sieve plate or a grid plate.
Application
Tire mill is mainly suitable for dry grinding and wet grinding in power and mineral industries.
Technical Parameters
Model | Roller Diameter (mm) | Roller Width (mm) | Rotation Speed (r/min) | Capacity (t/h) | Power (kW) | Weight (t) |
TY-1200 | 1200 | 450 | 30-35 | 10-15 | 55 | 12 |
TY-1300 | 1300 | 500 | 28-32 | 15-20 | 75 | 15 |
TY-1400 | 1400 | 550 | 25-30 | 20-25 | 90 | 18 |
TY-1500 | 1500 | 600 | 22-28 | 25-30 | 110 | 22 |
TY-1600 | 1600 | 650 | 20-25 | 30-35 | 132 | 26 |
TY-1700 | 1700 | 700 | 18-22 | 35-40 | 160 | 30 |
TY-1800 | 1800 | 750 | 16-20 | 40-45 | 185 | 35 |
TY-2000 | 2000 | 800 | 14-18 | 45-50 | 220 | 40 |
