Rotary Kiln
Contact Now
Products Details
Description

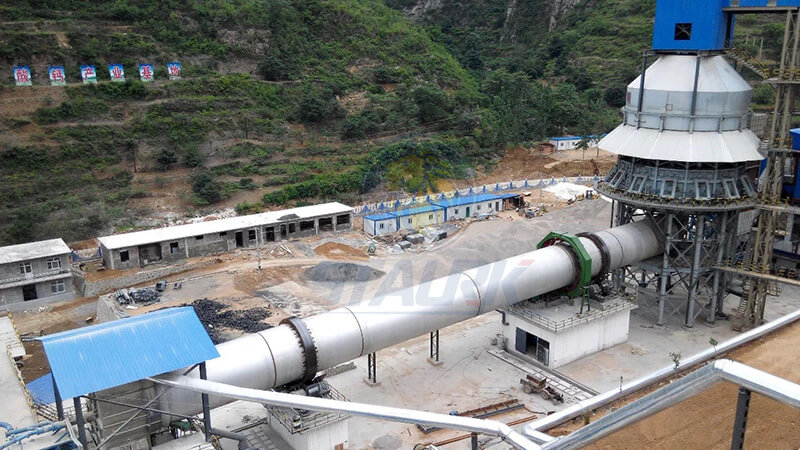

Rotary kiln consists of an inclined, rotatable long cylinder. The material enters from one end of the cylinder and is discharged from the other end after being heated at high temperature.
Features
1)High-temperature treatment capacity: suitable for all kinds of processes requiring high-temperature treatment.
2)Large processing capacity: suitable for large-scale production and processing requirements.
3)Strong adaptability: it can adapt to the treatment of different materials.
4)Continuous operation: ensuring the continuity and stability of production
Advantages
1. Efficient treatment: suitable for large-scale continuous production.
2. High-temperature capability: it can reach the high temperature above 1000°C, and meet various technological requirements.
3. Strong adaptability: it can handle a variety of materials, such as ores, chemicals and wastes.
4. High degree of automation: easy to operate and save labor costs.
Working Principle
Materials enter the rotary kiln from one port (usually the kiln tail), move gradually along the axial direction in the rotary kiln, and at the same time, the materials are mixed, heated and subjected to various chemical reactions, and finally discharged from the other port (kiln head). By heating the materials in the rotary kiln, different treatment effects such as drying, calcination, roasting, incineration, smelting and gasification can be realized.
Application
Rotary kiln is widely used in metallurgy, chemical industry, building refractories, sanitation and other industrial fields.
Technical Parameters
Model | Diameter (m) | Length (m) | Capacity (TPD) | Power (kW) | Rotation Speed (rpm) | Inlet Temperature (°C) | Application |
RK-2.0×30 | 2.0 | 30 | 500-800 | 55 | 0.5-5 | 800-1200 | Cement production |
RK-2.5×40 | 2.5 | 40 | 800-1200 | 75 | 0.5-5 | 800-1200 | Lime production |
RK-3.0×48 | 3.0 | 48 | 1200-2000 | 110 | 0.5-5 | 800-1200 | Iron ore pelletizing |
RK-3.5×55 | 3.5 | 55 | 2000-3000 | 160 | 0.5-5 | 800-1200 | Chemical processing |
RK-4.0×60 | 4.0 | 60 | 3000-5000 | 220 | 0.5-5 | 800-1200 | Large-scale industrial roasting |
