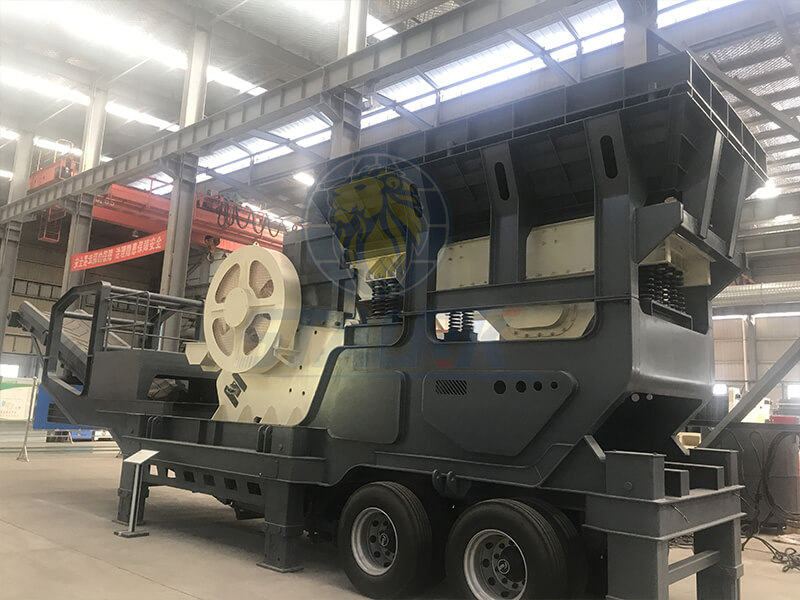

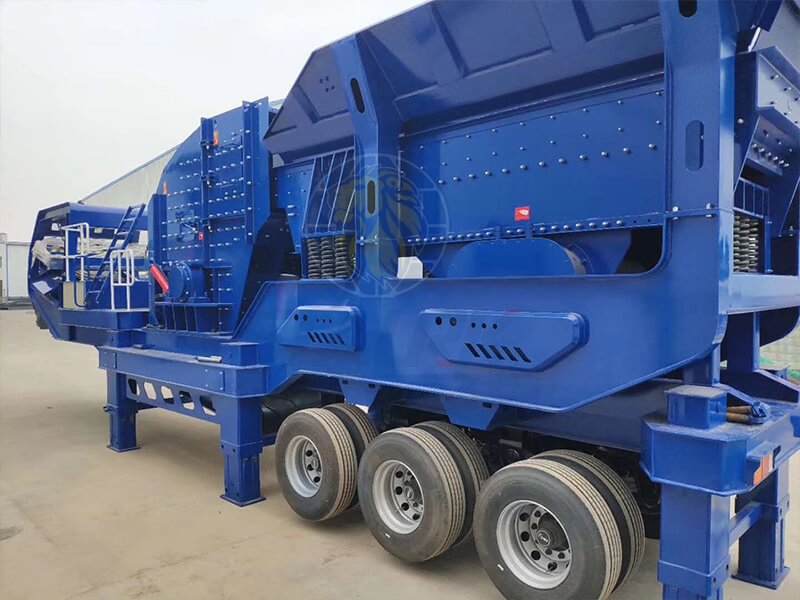

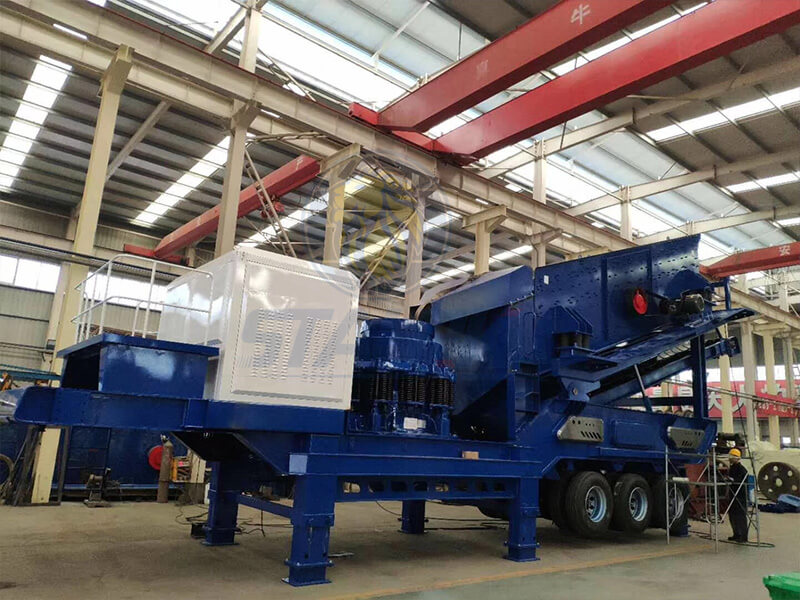

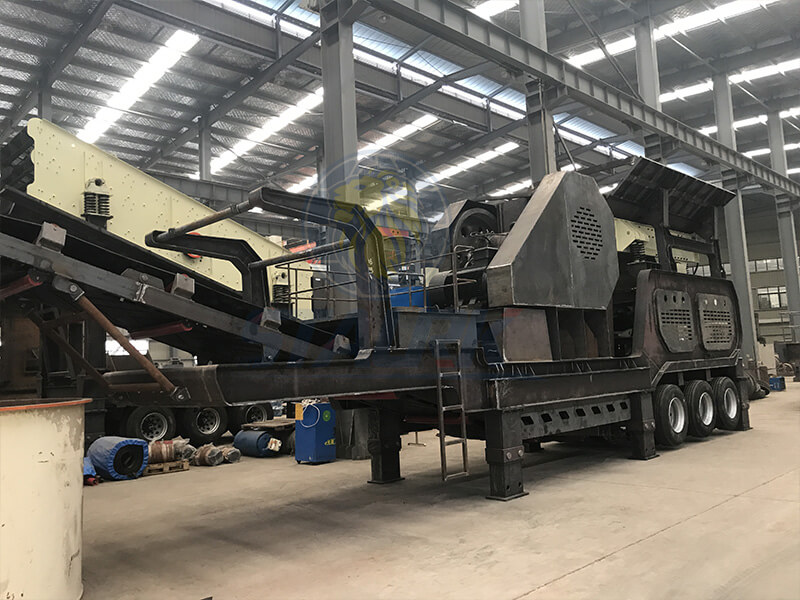

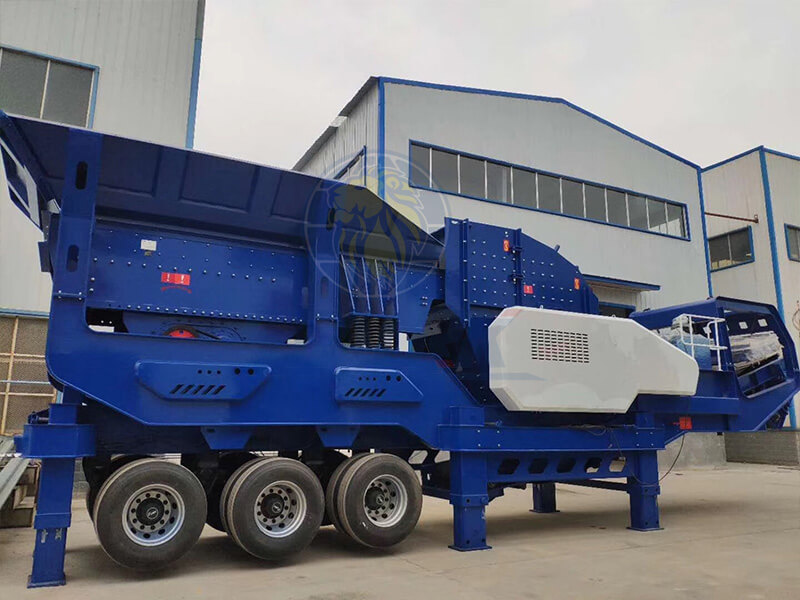

Mobile Crushing Station
Contact Now
Products Details
Description
Mobile crushing station has the characteristics of reasonable matching of crushing equipment at all levels, smooth discharge in the whole line process, reliable operation, convenient operation, high efficiency and energy saving. In particular, it has good maneuverability, can be extended with the raw material site or construction site, and can be combined in various ways to meet the needs of different materials.
Features
1)High flexibility: it can be quickly moved to different working places to adapt to various working environments.
2)Integrated design: integrating the functions of crushing, screening and conveying, reducing equipment configuration and transportation costs.
3)High degree of automation: equipped with advanced control system, easy to operate and save labor costs.
4)Strong adaptability: it can handle a variety of materials, such as ore, construction waste, concrete, etc.
Advantages
1. Integrated design: reduce the consumption of materials and working hours, and flexibly transfer to improve the overall operational efficiency.
2. Flexibility: move into the job site quickly, save time, and deal with all kinds of complex terrain flexibly.
3. Reduce the transportation cost: the mobile crushing station can process materials on site, and it is not necessary to transport the materials away from the site for further processing.
4. Flexible configuration: the mobile crushing station can be flexibly combined according to different crushing process requirements.
Working Principle
Materials are sent to the feed inlet of the mobile crushing station through loading equipment (such as excavators or loaders), and enter the crusher (such as jaw crusher, impact crusher or cone crusher) for crushing. The crushed materials are screened by vibrating screen to separate finished products with different particle sizes. The screened qualified materials enter the next process, and the unqualified materials return to the crusher for crushing again.
Application
Mainly used in metallurgy, chemical industry, building materials, hydropower and other materials that often need to be relocated, especially for the operation of mobile stones such as highways, railways and hydropower projects.
Technical Parameters
Model | Crushing Capacity (TPH) | Feed Size (mm) | Power (kW) | Weight (kg) | Dimensions (L x W x H, mm) | Application |
MCS-100 | 100-150 | 500 | 110 | 30,000 | 12,000 x 2,500 x 3,500 | Small-scale mining and quarrying |
MCS-200 | 150-250 | 600 | 160 | 45,000 | 14,000 x 2,800 x 3,800 | Medium-scale aggregate production |
MCS-300 | 250-350 | 700 | 220 | 60,000 | 16,000 x 3,000 x 4,000 | Large-scale mining operations |
MCS-400 | 350-500 | 800 | 300 | 80,000 | 18,000 x 3,200 x 4,200 | Industrial construction projects |
MCS-500 | 500-600 | 900 | 400 | 100,000 | 20,000 x 3,500 x 4,500 | Heavy-duty mining and crushing |
